Current location - HomeProductsPaper Slitter

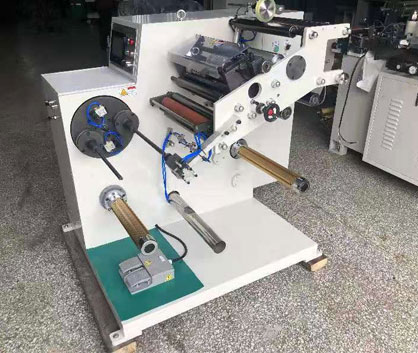

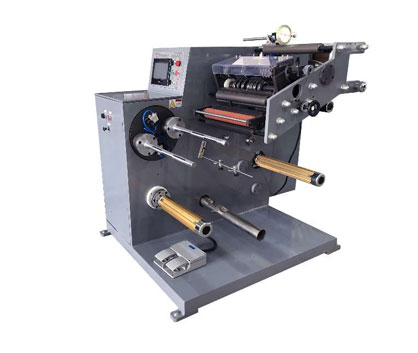

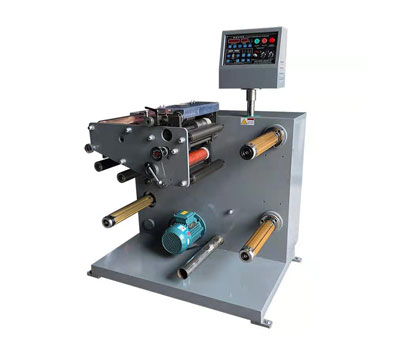

320b slitter / small slitter / adhesive Slitter

1. The main engine is controlled by variable frequency stepless speed.
2. Automatic meter counting device, when it reaches the preset length, automatically report * and stop.
3. It has automatic counting function.
4. Automatic control of double optical eyes.
5. It is easy to load and unload. This machine is suitable for trademark printing machine, drum die-cutting machine supporting products, suitable for narrow products slitting, compact structure, slitting speed, accurate slitting, convenient operation, smooth operation and other characteristics.
Hotline:13761127036

Product details


Main technical parameters:
Model Zx-320b type
Slitting speed 80m/min
Maximum web width 320mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Dimensions 1100X900X1280mm
Overall weight About(about)420kg
Main engine power 220V          0.75kw
Narrowest slitting 17mm
Widest slitting 320mm
Positioning accuracy ±0.2mm
