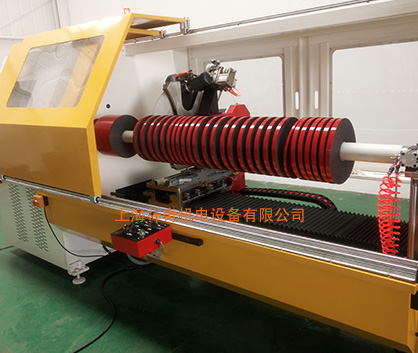

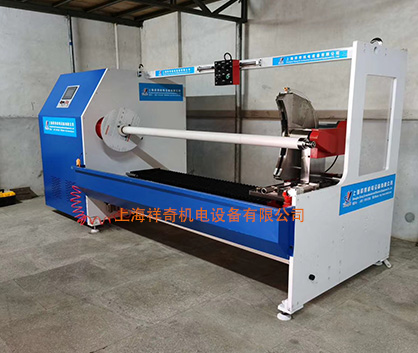

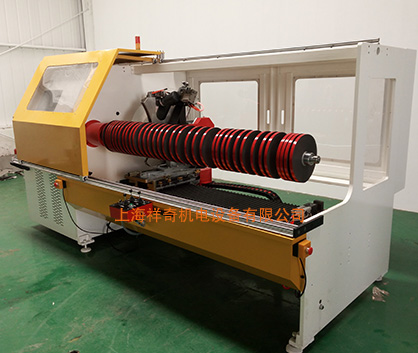

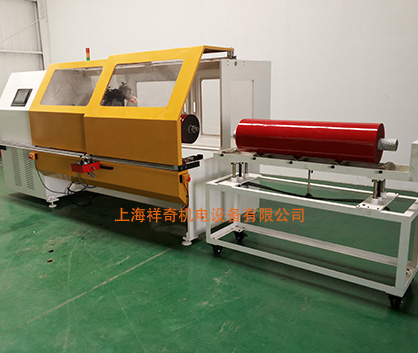

1. The machine is controlled by PLC. It can set various sizes in the same axis. The computer can automatically adjust the cutting width when cutting, and operate the touch screen
2. Touch the screen, you can input various parameters and function conditions directly on the screen.
3. Cutting with
Cold solution cooling system, can effectively avoid cutter glue, ensure the cutting operation
It is suitable for cutting double-sided tape, masking tape, cloth tape, kraft tape, protective film and so on
Functions and features:
1. Single knife single axis type.
2. Imported ball screw and linear bearing are adopted.
3. Automatic adjustment of cutting angle.
4. Round knife cutting, automatic cooling and lubrication.
5. Pneumatic control feed, stepper motor control cutting width.
Main technical parameters
|
Machine specifications |
1300mm 1600mm |
|
Effective width |
1350mm 1650mm |
|
Slitting accuracy |
±0.1mm |
|
Maximum cutting diameter |
270mm(select 76.2mm shaft) |
|
Inner diameter of slitting paper core |
25.4mm-76.2mm |
|
Maximum tool diameter |
450mm |
|
Equipment power |
6kw |
|
Supply voltage |
380V 50HZ 3Ф |
|
Working pressure |
0.4-0.6MPa |
|
Dimensions |
2850*1050*1200mm |
