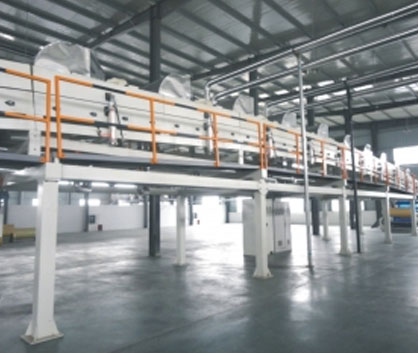

PVC electrical tape coating machine product introduction: suitable for the production of PVC electrical insulation tape coating process.
Features of PVC electrical tape coater:
1. Multi stage low tension control the operation of the substrate to accurately control the minimum shrinkage of the substrate;
2. It is suitable for drying oven system with different heat sources to accurately control the temperature of drying oven in sections;
3. Surface coiling and fixed length automatic coiling platform with membrane storage box is adopted to realize fixed length coiling and non-stop membrane connection, with high production efficiency;
4. Adopt different coating methods to adapt to different coating processes of water-based adhesive and oil-based adhesive, and accurately control the coating amount.
Technical parameters of PVC electrical tape coater:
Base material width: 1000mm, 1300mm, 1600mm (can be customized according to customer demand)
Coating substrate thickness: 0.1-0.25mm
Coating weight: primer 1.5g/m (dry weight), surface adhesive 25-30g / m
Gluing method: reticulate gluing, direct scraping transfer gluing (comma scraper metering gluing) (can be customized according to customer demand)
Rated speed: 0-40m / min (can be customized according to customer demand)
Production speed: 5-25m / min (can be customized according to customer demand)
Heating mode: steam, heat transfer oil, electric heating, hot stove heating (can be customized according to customer demand)
Power supply: 3-phase, 380V, 50 Hz
Gas source: compressed air 6-8kg / m2
Water source: 2kg / m3
