Product introduction: base material: paper, PET film
1. Coating method: anilox roll coating, four times coating, one time
2. The oven adopts double arched structure, aluminum silicate insulation material, namely high temperature resistance, waterproof, good insulation effect, low noise centrifugal fan, automatic temperature control
3. The take-up and take-off are cylinder pull type
4. Man machine interface operation, the whole machine is controlled by PLC closed loop
5. One button operation, convenient for users

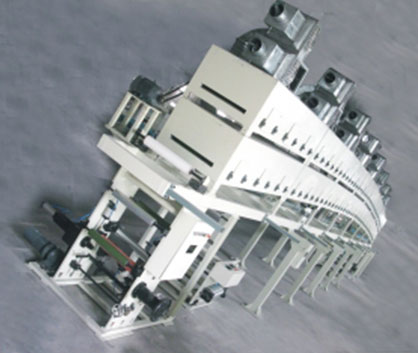

Main technical parameters of post it note coater
1. Effective coating width: 1300 / 1600 / 2000mm;
2. Mechanical speed: 10-100m / min;
3. Effective winding / unwinding diameter: ф 1000mm;
4. Drying oven length: according to the user's process.

Main features of post it coating machine:
1. Professional design and manufacture according to the user's production process and substrate characteristics;
2. Special high-efficiency drying oven to improve drying efficiency and reduce energy consumption;
3. Temperature and tension are controlled by sections to meet different process requirements;
4. PLC programmable control of the whole machine can realize precise synchronous control and multi-point control, and the operation and maintenance is simple.
