Brief introduction of the machine technology
[matching] automatic pipe cutting machine and automatic pipe loading and unloading machine shall be provided during use
[purpose and characteristics]
·It can cut paper tube with inner diameter of 76mm and length of 50mm.
·Using air pressure tension, cutting speed, reasonable structure, simple operation.
·Cutting width can be adjusted arbitrarily.

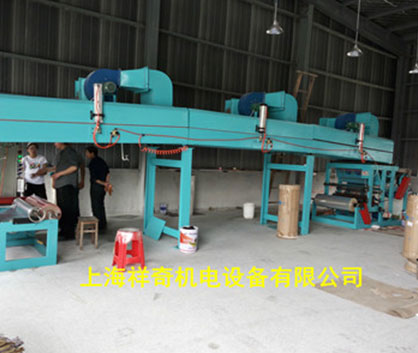

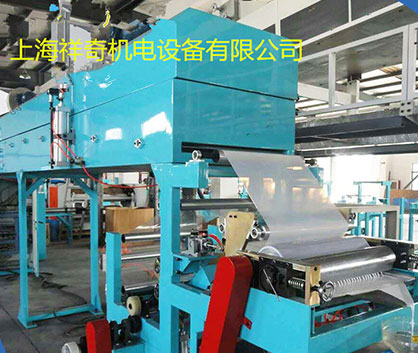

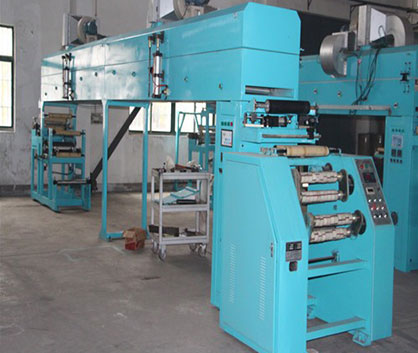

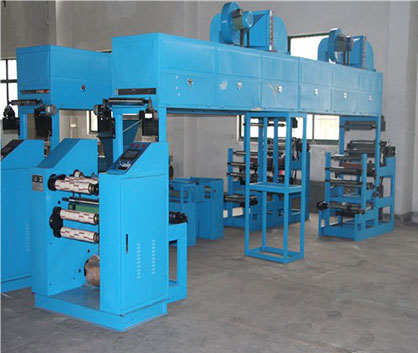

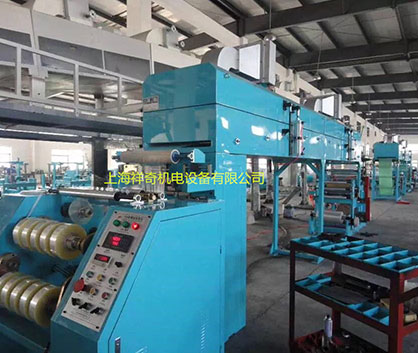

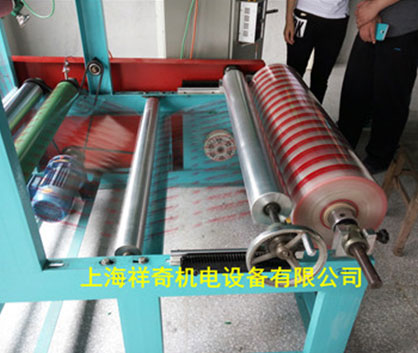

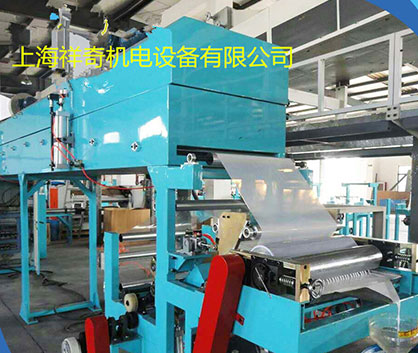

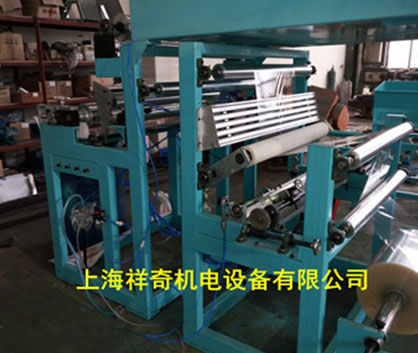

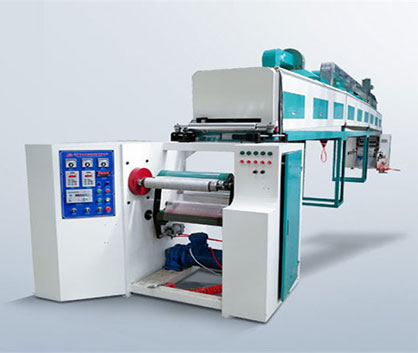

Technical parameters of XQ-500 precision coating belt machine:
Machine type: oven heating type, strong arch type,
Base material width: min500-max.1600mm
Coating width: 500mm -- 1650mm
Base material diameter: max. 800mm
Coating: water glue
Length of base material: 500-6000m. (the outer diameter is 800mm.)

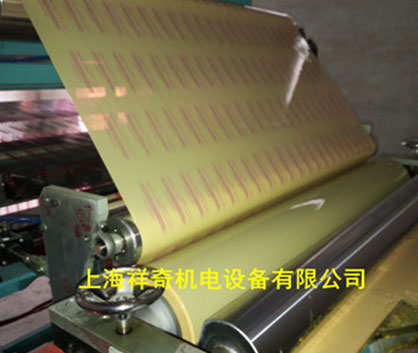

Gluing method: bar gluing
Glue viscosity: 50-150cps
Mechanical speed: 30-200 M / min
Coater speed: 30 ~ 200m / min (according to customer requirements)
Reference temperature: indoor: calculated according to min.10 degree C
Oven temperature: up to 130 ℃
Heating mode: steam, heat transfer oil (according to customer's choice)
Coil unloading mode: double station exchange coil unloading
Coiling mode: double station exchange coiling
Compressed air: 5kg / cm2
Main engine power: 3-phase, 380V, 50 Hz
