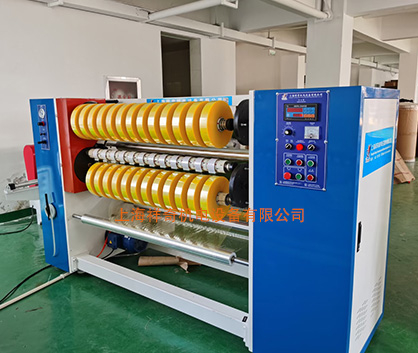

1000m large size high speed belt Slitter

1. Adopt four axis automatic exchange coiling, continuous coiling, improve work efficiency.

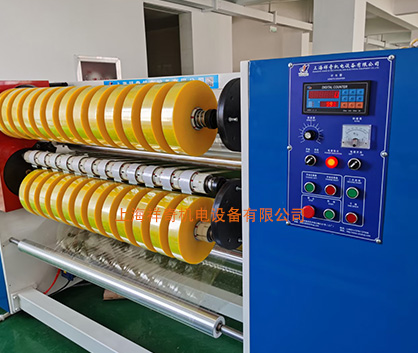

2. PLC control system, touch screen operation.
3. The unfolding wheel adopts a unique bow design to completely eliminate the wrinkle of the belt during unfolding or feeding.
4. Raw material roller can reduce the noise caused by slitting operation.
5. (optional) automatic labeling function, oil pressure feeding mechanism, sound insulation cover mechanism, air knife device, super transparent device.
Hotline:13761127036

Product details

Main technical parameters:

Model XQ-210-1300 XQ-210-1600
Effective width 1320MM 1620
Unwinding diameter 800MM 800MM
分切宽度 10MM 10MM
Roll up3“Four axis exchange 180MM 180MM
Winding diameter3“Two axis exchange 300MM 300MM
Mechanical speed 0-180M/MIN 0-180M/MIN
Tool 0.2*22*60MM 0.2*22*60MM
Total power 4KW 4KW
