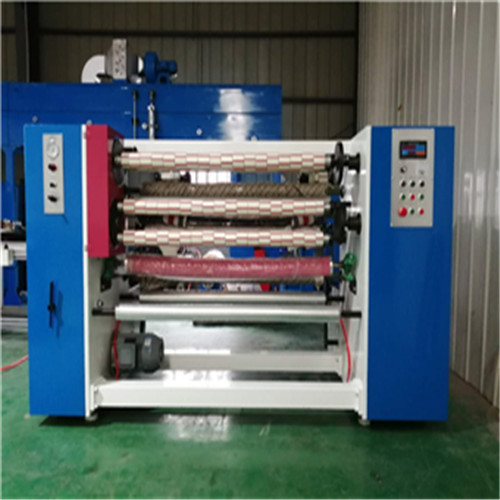

Features of slitter machine:
1. It is welded by thick steel plate, which is firm and angle balanced, so that the machine can work stably at high speed
2. The whole machine is made of chrome plated steel pipe, and each pipe is subject to dynamic balance treatment
3. Unwinding adopts 3-inch air expansion unwinding shaft, the maximum unwinding diameter can reach 600mm, equipped with magnetic powder tension controller and automatic aligning device,
4. The winder adopts 3-inch air expansion reel and magnetic powder tension controller to winder. The slitting operation is simple, and the maximum winder diameter can reach 600mm. The winder is beautiful and neat
5. The cutter can use industrial surgical blade or flat blade (Art blade), and the adjustable cutter is between 18mm-1600mm
6. Stepless speed change system is used for spindle and round knife, which can be used as high and low speed regulation and positive and negative switching control; electronic speed regulation system, which can adjust the speed of the machine manually, is convenient and simple
7. Equipped with double-sided diamond grinding system, the service life of the grinding wheel can be up to two years; the blade can be grinded without disassembly to keep sharp for a long time; the best cutting quality can be achieved; and the dust collection capacity is attached to keep the cloth and track clean
8. The imported precision ball screw and slide rail are used to advance the cutting width in parallel, and the imported AC motor adjustment system is used to adjust and control the cutting speed steplessly, so as to achieve high-precision cutting, and the accuracy can be controlled within 0.1 mm
9. Equipped with high-precision deviation correction device system, so as to further ensure the cutting accuracy
10. Chinese and English operation interface, LCD display, can directly input several kinds of load cutting width and quantity settings, and has manual / automatic conversion function, which makes the operation more simple and convenient
11. Adopt the design of fast feeding, feeding and blanking can be completed in one action, effectively reducing the amount of labor in production, so as to improve the production efficiency.
12. Automatic counting device, clear at a glance.
